IO SYS
D2 Module

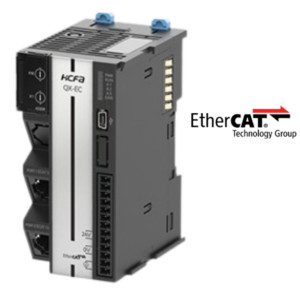

Coupler Module
Product Series : Q Series Remote Expansion Modules
Module Type : EC Coupler Module
Module Role : The EtherCAT Coupler is the connection between the fieldbus-level EtherCAT protocol and the EtherCAT Terminals. The coupler converts the transmitted telegrams from Ethernet 100BASE-TX to Q-bus signal representation.
Output Specifications : 12V 16V

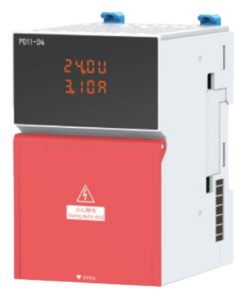

Power Module
Module Type : Power Module
Input specification : AC100~240V 50/60Hz 80W/MAX
Output Specifications : 12V 60W
Designed Life : 5 years (20 hours of work per day, temperature according to 30 ℃ ring temperature)

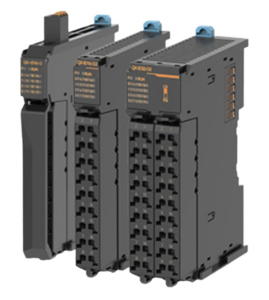

Digital Input Modules
Product Series : Q Series Remote Expansion Modules
Module Type : Digital module
Number of Channels : 16/32 channels
Model : HCQX-ID16-D2, HCQX-ID16-D, HCQX-ID32-D2
Input Format : NPN and PNP compatible
Digital Output Modules
Product Series : Q series remote expansion modules
Module Type : Digital module
Number of Channels : 16/32 channels
Model : HCQX-OD16-D2*, HCQX-OD16-D, HCQX-OD32-D2*
Input Type: NPN
Digital I/O Module
Product Series : Q series remote expansion modules
Module Type : digital module
Number of Channels : 16/32 channels
Model : HCQX-MD16-D2*, HCQX-MD16-D, HCQX-MD32-D2*
Input Type : NPN and PNP compatible Output

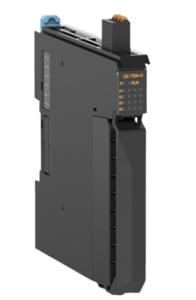

Temperature Measurement Module
Product Series : Q series remote expansion modules
Module Type : Temperature measurement module
Number of Channels : 4 channels
Thermocouple : K, J, E, T, N, B, R, S (default is K type)
RTD : PT100, PT1000, Ni100, Ni1000 (default PT100) 3-wire system

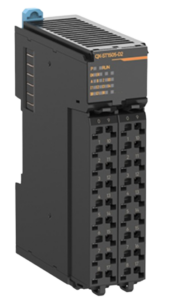

Step Driver
Product Series : Q series remote expansion module
Module Type : stepper driver module
Number of Channels : ingle axis
Motor Control Mode : PP, PV, CSP, Homing
Maximum Output Current : max. not more than 5A (peak)
Input Supply Voltage : 20/50V
