IO SYS
D4 Module
Coupler
Product Series : QX-D4 series new extension IO
Module Type : Coupler module
Functions : Applicable to Q-series remote extension modules and EtherCAT master station.
Splitter
Product Series : QX-D4 series new extension IO
Module Type : Splitter module
Functions : 6-ch EtherCAT splitter, applicable to EtherCAT master station and slave station.
Digital Input Modules
Product Series : QX-D4 series new extension IO
Module Type : Digital input module
Number of Channels : 16/32-ch
Model : HCQX-ID16-D4、HCQX-ID32-D4
Input Format : NPN/PNP

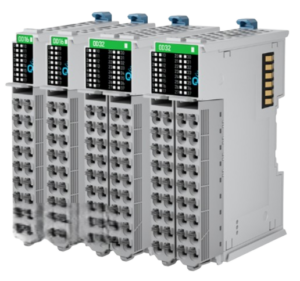

Digital Output Modules
Product Series : QX-D4 series new extension IO
Module Type : Digital onput module
Number of Channels : 16/32-ch
Model : HCQX-OD16-D4、HCQX-OD16-D4-PNP、HCQX-OD32-D4、HCQX-OD32-D4-PNP
Input Format : NPN
Digital I/O Modules
Product Series : QX-D4 series new extension IO
Module Type : Digital I/O module
Number of Channels : 16/32-ch
Model : HCQX-OD16-D4、HCQX-OD16-D4-PNP、HCQX-OD32-D4、HCQX-OD32-D4-PNP
Input Format : NPN/PNP
Output Format : NPN

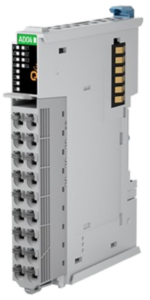

Analog Input Module
Product Series : QX-D4 series new extension IO
Module Type : Analog input module
Number of Channels : 4-ch
Model : HCQX-AD04-D4
Voltage Input Range : -10~10V、0~10V、-5~5V、0~5V、1~5V
Current Input Range : 0~20mA、4~20mA
Temperature Measuring Module
Product Series : QX-D4 series new extension IO
Module Type : Temperature measuring module
Number of Channels : 4-ch
Model : HCQX-AD04-D4
Thermal couple : K，J，E，T，N，B，R，S (default K）
Thermal Resistance : PT100, PT1000, Ni100, Ni1000（default PT100); 3-wire mode
